Example Notebook : Weibull

In this notebook, we’ll use the mastectomy dataset, which contains information about breast cancer patients and their survival times. We will use the Bayesian Weibull Model (implemented in PyBH) to analyze survival data and compare patients with and without metastasis.

import sys
import os
import pandas as pd

import numpy as np
import matplotlib.pyplot as plt
import pymc as pm
import arviz as az

# Add parent directory to path to import pymc_models

sys.path.append(os.path.abspath(os.path.join(os.getcwd(), '../../../..')))

from PyBH.SurvivalAnalysis.pymc_models import Weibull
from PyBH.SurvivalAnalysis.SurvivalAnalysis import SurvivalAnalysis

1. Load Data

We load the mastectomy dataset using PyMC’s data utility.

try:
    # Try loading via pymc
    data = pd.read_csv(pm.get_data("mastectomy.csv"))
except:
    # Fallback to hardcoded url or local file if pm.get_data fails (for offline safety)
    print("Could not load via pm.get_data, checking local or alternative source...")
    # Assuming it works as per user request, otherwise we might need a backup source
    # data = pd.read_csv("https://raw.githubusercontent.com/pymc-devs/pymc-examples/main/examples/data/mastectomy.csv")
    raise

print(f"Dataset loaded! Shape: {data.shape}")
print(data.head())

Dataset loaded! Shape: (44, 3)
   time  event metastasized
0    23   True           no
1    47   True           no
2    69   True           no
3    70  False           no
4   100  False           no

wbll = Weibull()

# Use PyBH's SurvivalAnalysis class to fit the model
# This automatically handles validation and preprocessing
survival_analysis = SurvivalAnalysis(
    model=wbll,
    data=data,
    time_col='time',
    event_col='event',
    draws=1000, tune=1000, chains=2
)

Initializing NUTS using jitter+adapt_diag...

   -> Mode: Bayesian (PyMC)

Multiprocess sampling (2 chains in 2 jobs)
NUTS: [alpha, beta]

Sampling 2 chains for 1_000 tune and 1_000 draw iterations (2_000 + 2_000 draws total) took 1 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics

2. Preprocessing

The dataset has:

• time: survival time

• event: 1 if event observed (death), 0 if censored

• metastasized: ‘yes’ or ‘no’

# Ensure event column is numeric
data['event'] = data['event'].astype(int)
print(data['metastasized'].value_counts())

metastasized
yes    32
no     12
Name: count, dtype: int64

3. Fit Weibull Model (All Patients)

First, we fit the model on the entire population to get a global survival curve.

# Summary of the global model
survival_analysis.summary()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
alpha	0.884	0.153	0.573	1.159	0.004	0.004	1156.0	959.0	1.0
beta	192.051	54.335	115.229	298.528	1.708	2.451	1343.0	974.0	1.0

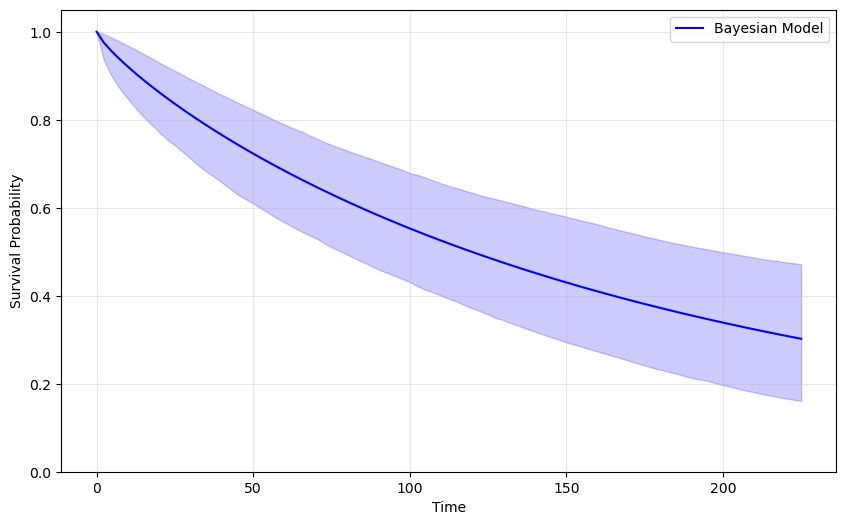

survival_analysis.plot_survival_function()

<Axes: xlabel='Time', ylabel='Survival Probability'>

4. Compare Groups: Metastasis vs No Metastasis

We fit two separate models to see the impact of metastasis on survival.

data_yes = data[data['metastasized'] == 'yes']
data_no = data[data['metastasized'] == 'no']

print(f"N (Metastasized): {len(data_yes)}")
print(f"N (No Metastasis): {len(data_no)}")

wbll_yes = Weibull()
print("\nFitting Model: Metastasis = YES")
sa_yes = SurvivalAnalysis(model=wbll_yes, data=data_yes, time_col='time', event_col='event', draws=1000, tune=1000, chains=2, progressbar=False)

wbll_no = Weibull()
print("\nFitting Model: Metastasis = NO")
sa_no = SurvivalAnalysis(model=wbll_no, data=data_no, time_col='time', event_col='event', draws=1000, tune=1000, chains=2, progressbar=False)

Initializing NUTS using jitter+adapt_diag...

N (Metastasized): 32
N (No Metastasis): 12

Fitting Model: Metastasis = YES
   -> Mode: Bayesian (PyMC)

Multiprocess sampling (2 chains in 2 jobs)
NUTS: [alpha, beta]
Sampling 2 chains for 1_000 tune and 1_000 draw iterations (2_000 + 2_000 draws total) took 1 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
Initializing NUTS using jitter+adapt_diag...

Fitting Model: Metastasis = NO
   -> Mode: Bayesian (PyMC)

Multiprocess sampling (2 chains in 2 jobs)
NUTS: [alpha, beta]
Sampling 2 chains for 1_000 tune and 1_000 draw iterations (2_000 + 2_000 draws total) took 1 seconds.
There were 13 divergences after tuning. Increase `target_accept` or reparameterize.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details

Compare Posteriors

Let’s look at the posterior distributions for Mean Survival Time or just the parameters.

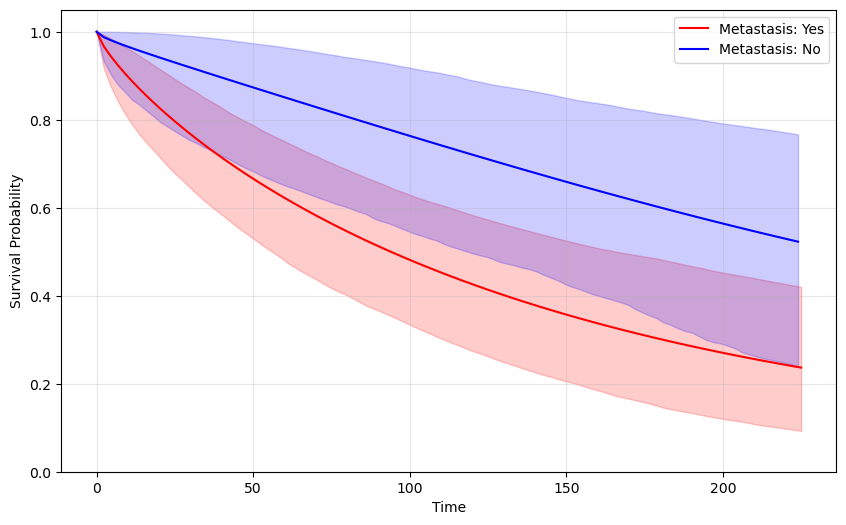

limit = data['time'].max()
times = np.linspace(0, limit, 100)

fig, ax = plt.subplots(figsize=(10, 6))
surv_yes = sa_yes.plot_survival_function(ax, label='Metastasis: Yes', color="red")
surv_no = sa_no.plot_survival_function(ax, label='Metastasis: No', color="Blue");

import arviz as az
import matplotlib.pyplot as plt

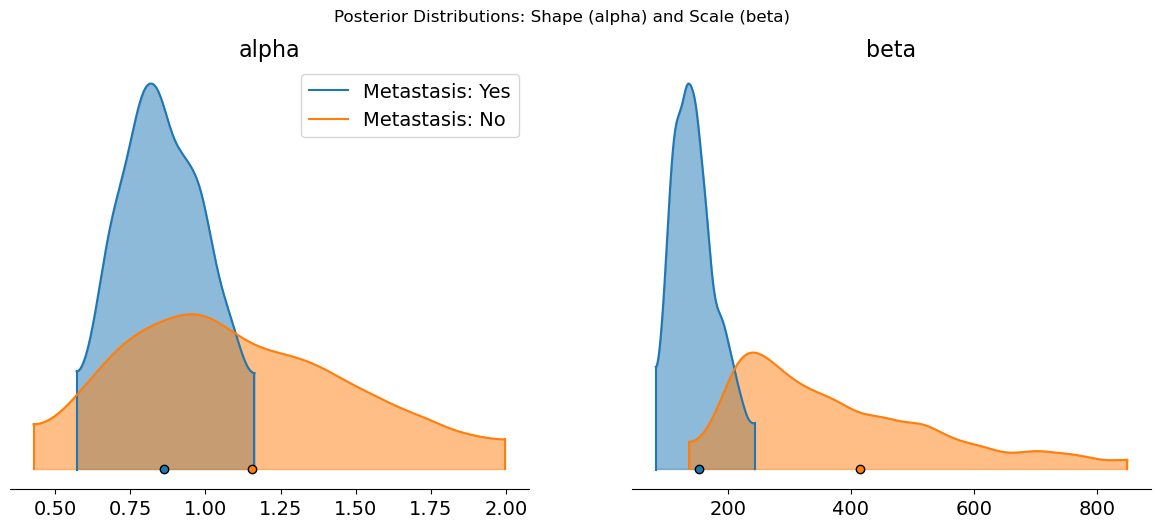

# Compare posteriors for Alpha (Shape) and Beta (Scale)
# We pass a list of InferenceData objects and their labels
az.plot_density(
    [sa_yes.idata, sa_no.idata],
    var_names=["alpha", "beta"],
    data_labels=["Metastasis: Yes", "Metastasis: No"],
    shade=0.5
)
plt.suptitle("Posterior Distributions: Shape (alpha) and Scale (beta)")
plt.show()
